26 Meters Excavator Long Reach Boom Arm High Work Range For High
Buildings Demolish
1)Type: two-segment type (long reach boom ), three-segment type
(demolition boom)
Two-segment type is mainly applied in the transit of building
materials like earth, sand, and concrete, slope maintenance of
expressways and dredging of watercourses, etc.
Three-segment type is mainly applied in demolishing high-rise.
2) Optimized materials selection: Q345B, Q690D, Hardox400/450/500
3) Standard supply contains: bucket, linkage, bucket cylinder, 4
oil pipe/hose, 6pins, and lubricating system
4) Advanced manufacturing process and technique is in the line with
global standards
5) Applicable for all the excavator model. OEM service is also
available
6) Warranty for 6 months
Specification:
| Excavator model | Doosan DX520 |
| Total length | 26000 mm |
| Boom length of 1st section | 13500 mm |
| Middle boom length | 2400 mm |
| Stick length | 10100 mm |
| Max reach height | 27200 mm |
| Max reach redius | 13600 mm |
| Tail rotate redius | 3670mm |
| Max weight of attachment | 1600 kg |
| Counter weight | 6 ton |
| Warranty | 6 months |
Description:

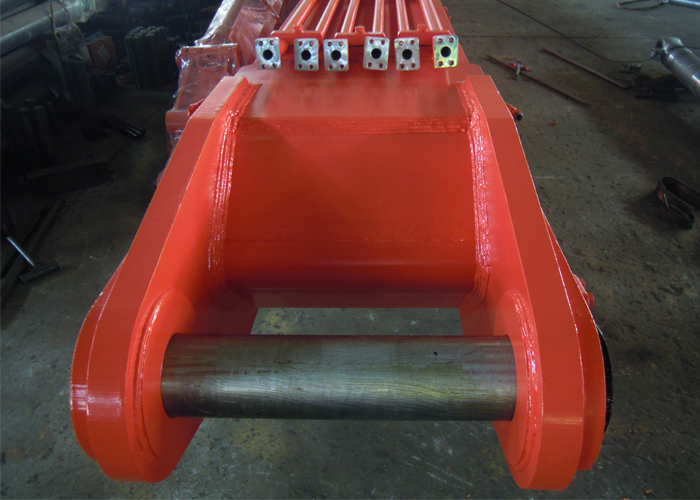

1, High reach demolition boom is very popular in demolishing
work.It have high work range,can demolish high buildings
directly,also keep the excavator and operator long distance away
from the buildings,supply
safty guard for demolition work.
2, We can customizing all kinds of demolition boom for all kinds of
excavators.
3, All kind of material is optional in customizing the demolition
boom,such as Q345B, Q420D, Q690D, Weldox700, Weldox900 etc.
4, When select the material of the long boom,according to the boom
length,excavator size,attachment self-weight, local weather and
temperature etc,we will select the right material for you.
5, We will supply all the pipeline for you according to your
requests. If you need, we also can prepare the extra pipe for you.
6, For this DX520 demolition boom, we made with 26 Meters. But for
shipment.
Features:
7, As per customer request, we only prepare 2 cylinder, one bucket
cylinder, one stick cylinder(stick connect with middle boom).The
Middle boom cylinders(middel boom connect with boom) was use
original cylinders to save the cost.
8, We can make the drawing and working diagram for your reference
before you make an order if you need.
9, Usually DX520 Excavator suit 26 meters boom need to add 6 ton
counter weight. But for customer request, we not make the counter
weight, because the customer will prepare the counter weight
themself.
10, This demolition boom was exported to South Africa.
