Hitachi ZX360 18m Material Handling Arm Broken Rocks Unloading Heavy Duty

^{Hitachi ZX360 18m Material Handling Arm Broken Rocks Unloading
Heavy Duty

Description:
Material Handler boom mainly for loading,unloading and transpoting
work,very high efficient.} ^{It's popular in loading & Unloading of Coal,Sand,Corn,etc.} ^{Material Handler also popular in recycling company.} ^{Long reach excavator boom arm is larger work range,very popular and
high efficient in dredging work,dredging river,dredging
sea,dredging port,etc.} ^{Because long boom have larger workrange,so also popular in lots of constructions,such as subway construction,dam
construction,etc}

^{Specification Of Our Standard Material Handling Boom Arm:}

^Model	^HK-MHB300	^HK-MHB400	^HK-MHB500
^{Excavator / ton}	^25~33	^34~45	^46~55
^{Total Length / mm}	¹³⁰⁰⁰	¹⁶⁰⁰⁰	²⁰⁰⁰⁰
^{Boom Length / mm}	⁷⁸⁰⁰	⁹¹⁰⁰	¹²¹⁰⁰
^{Stick Length / mm}	⁵²⁰⁰	⁶⁹⁰⁰	⁷⁹⁰⁰
^{Max work range / mm}	¹¹⁸⁰⁰	¹⁴⁸⁰⁰	¹⁸⁵⁰⁰
^{Max Loading Height / mm}	⁵⁰⁰⁰	⁷⁶⁰⁰	⁸⁸⁰⁰
^{Attachments Weight / kg}	¹²⁰⁰	²⁰⁰⁰	²⁵⁰⁰
^{Max Lift Capacity / ton}	^1.8	^3.5	⁴
^{Counter weight / ton}	^{No need}	²	⁴

^{Above parameter is our standard parameters,if you need special
design,we can customize for you.}

^{Specification of our standard long reach excavator boom arm:}

^Model	^{Total Length (mm)}	^{Self weight (kg)}	^{Max reach (mm)}	^{Max cut depth (mm)}	^{Max cut Height(mm)}	^{Folding height(mm)}	^{Bucket Vol. (cum)}	^{Excavator (Ton)}
^LR120	¹³⁰⁰⁰	²⁸⁰⁰	¹²⁵⁰⁰	⁹⁰⁰⁰	¹¹³⁰⁰	²⁹⁰⁰	^0.3	^10~15
^LR200-1	¹⁵⁵⁰⁰	⁴¹⁵⁰	¹⁵⁴⁰⁰	¹¹³⁴⁰	¹²⁵¹⁰	²⁹⁸⁰	^0.6	^16~22
^LR200-2	¹⁸⁰⁰⁰	⁴⁴⁰⁰	¹⁷⁶⁰⁰	¹²²⁰⁰	¹³⁵⁰⁰	³⁰⁴⁰	^0.4	^20~24
^LR300	¹⁸⁰⁰⁰	⁵²⁰⁰	¹⁷⁶⁰⁰	¹²²⁰⁰	¹³⁷²⁰	³²¹⁰	^0.4	^25~33
^LR350	²⁰⁰⁰⁰	⁶⁰⁰⁰	¹⁹⁶⁰⁰	¹⁴⁵⁰⁰	¹⁴⁹²⁰	³³²⁰	^0.5	^30~36
^LR400	²²⁰⁰⁰	⁶⁵⁰⁰	²¹⁶⁰⁰	¹⁶¹⁰⁰	¹⁶¹⁰⁰	³⁴⁰⁰	^0.6	^35~42
^LR450	²⁴⁰⁰⁰	⁷⁰⁰⁰	²³²⁰⁰	¹⁸⁰⁰⁰	¹⁷³⁰⁰	³⁴³⁰	^0.6	^40~50

^{Above parameter is our standard parameters,if you need special
design,we can customize for you.}

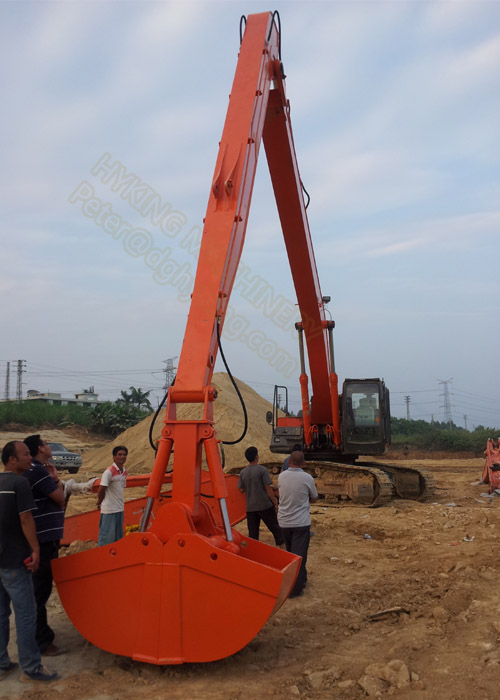

^{Specification of this Hitachi ZX360 18m Material Handling Boom Arm:}

^{Total length}	^{18000 mm}
^{Boom length}	^{10000 mm}
^{Stick length}	^{8000 mm}
^Bucket	^{1.2 cum shell bucket}
^{Max reach}	^{17000 mm}
^{Max Load &unload height}	^{11100 mm}
^{Max Load & unload depth}	^{13200 mm}
^Material	^Q345B+Q690D
^{Extra counter weight}	^{No need}

^{This HItachi ZX360 18m Material Handling boom arm is a special
mixed design.}

^{The Mainbody of long boom is our standard Long reach boom arm
design,but bucket is a clamshell bucket.}

^{Because customer need this long boom to do both
loading&unloading work,also can do excavating work.}

^{Dismantling the clamshell bucket and replacing a GP bucket,the
excavator is a long boom excavator for excavating.}

^{Our service:
1. We specialized in customizing all kinds of long boom for all
kinds of excavators.
We have detailed dimension of this Hitachi ZX360 excavator,so just
give us the excavator model is ok.
2. Main sheet Material of this Hitachi ZX360 excavator long reach
material Handling boom arm is Q345B + Q690D,the top and bottom
cover plate of boom and stick is Q690D,and other sheet is
Q345B,Pin’s material is 42CrMo4.
3. Before welding,we have use big edge milling machine mill the
edge of the sheet.So the welding can go to the internal of the
steel-sheet and make the structure have higher performance.}

^{4. Welding is protective gas welding,the protective gas is 80%
Argon and 20% CO2 mixed.

5.For all long boom we produced,will supply follow parts:
Bucket:1 pcs
Linkage:1 kits
Bucket cylinder:1 pcs
Hydraulic pipe:1 kits
Lubricant pipe:1 kits
Counter weight(if need):1 pcs
Stick cylinder:Can match original stick cylinder to save cost,if
you need,we also can prepare.
For bigger excavator(tonnage higher than 50ton),we advise use the
original stick cylinder,original cylinder quality much more better.}

^{Application:
1. The long boom is a double function long boom,The customer is a
High Speed Road construction projects contractor.
2. Customer Purchase the long boom for broken rock unloading from
Barge.}

^{3. After broken rocks unloading,customer also need the long boom
can replace a GP bucket for excavating work.}
